Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity

1
MOQ
Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Nauwkeurigheid: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Stroom: 650W
Beschermingsklasse: IP56
Spanning: 220 V, 380 V, 240 V, 110 V
Test Kamer Temperatuur: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Capaciteit testkamer: 180L,270L,600L,1440L of naar maat gemaakt
Nevelhoeveelheid: 1.0~2.0 ml/80 cm2/h
PH: 6.5~7.2 3.0~3.2
Controleur: PID- of LCD-aanraakscherm
Verzadigde luchttemperatuur: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Grootte testkamer: 60*45*40cm, 90*60*50cm, 1200*1000*500cm, 1500*1000*500cm, 2000*1000*500cm
Maximale vloeistofcapaciteit: 15L, 25L, 40L
Stroomvoorziening: AC220V,10A; AC220V,15A; AC220V,30A
Sproeiendop: Bo Nute-principe
Vertoningsparameters: Temperatuur, luchtvochtigheid, druk, spuitcapaciteit, tijd
Markeren:

ACSS 35°C±1°C Salt Spray Test Chamber

,

CASS 50°C±1°C Salt Fog Test Chamber

,

180L Capacity Corrosion Test Chamber
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: LIYI
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Liyi Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester for Battery Metal Test
The Liyi Salt Fog Corrosion Test Chamber is designed to evaluate the corrosion resistance of metal materials and their protective coatings, including electroplating, anodizing, conversion coatings, and paint finishes. This accelerated corrosion testing equipment helps predict material suitability by simulating harsh environmental conditions.
Key Features

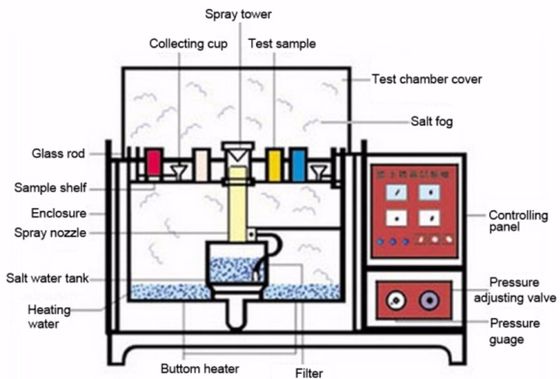

  • Advanced spray nozzle system based on the Bo Nute Principle, ensuring saline water atomization without crystallization
  • Precision digital microcomputer controller for accurate temperature regulation
  • Comprehensive display showing temperature, humidity, pressure, spray capacity, and test duration
  • Compatible with international testing standards worldwide
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 750L 1000L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Test Chamber Size (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Max Capacity of Test Liquid (L) 15 25 40 40 40
Power AC220V, 10A AC220V, 15A AC220V, 30A
Product Images
Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 0 Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 1 Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 2 Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 3
Storage Information
Selected models are maintained in stock for urgent purchase requirements.
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
We are a professional manufacturer of testing equipment with comprehensive after-sales support. All machines include a 12-month warranty from shipment date, with an additional 2-month extension for sea transportation. We provide free maintenance during the warranty period and offer technical support via email or video consultation, with solutions typically provided within 24-48 hours of problem identification.
2. What is the delivery time?
Standard models are typically available for immediate shipment if in stock. For out-of-stock standard machines, delivery time is approximately 15-20 working days after deposit receipt. Urgent orders receive priority handling.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines to meet specific requirements, including OEM services with client branding.
4. How is the machine installed and operated?
Most machines are shipped fully assembled, requiring only power connection. We provide English operation videos and can assist with on-site installation when necessary.
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With production facilities in Dongguan and a service office in Kunshan, we serve customers in over 150 countries. Our product range includes environmental test chambers, material testing equipment, and customized solutions that meet international standards.
Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 4
